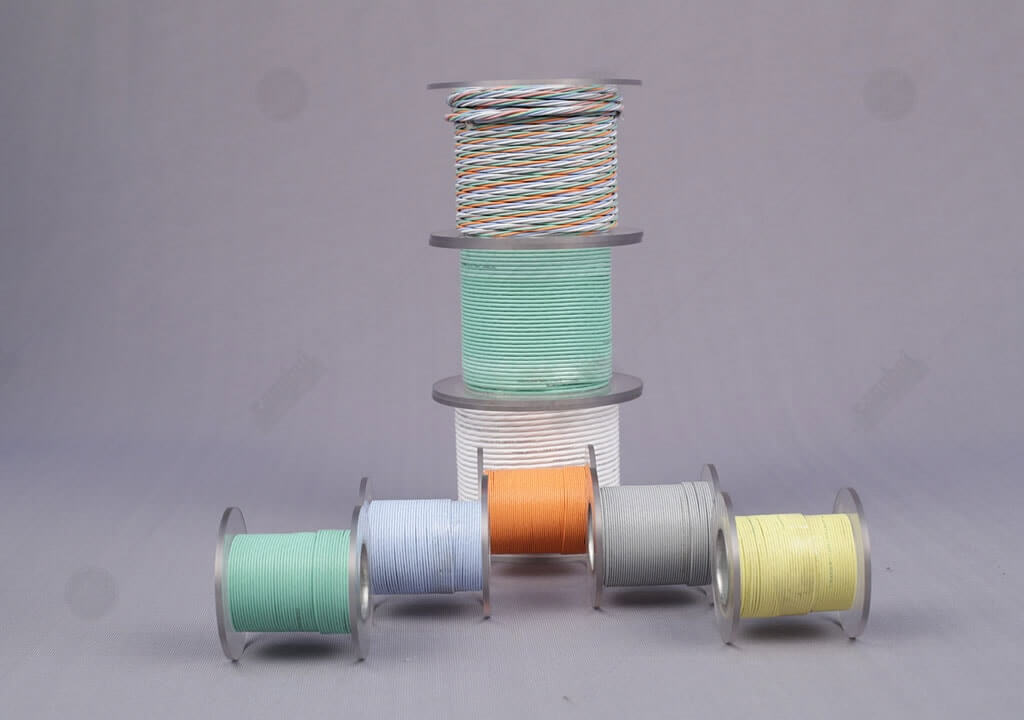

Polyimide and PTFE Composite Insulated Wire

Polyimide and PTFE Composite Insulated Wire as per MIL-DTL-22759/80A to 92A

PART NUMBERING SYSTEM

SIZE RANGE & DESIGN GUIDE

  Insulation Rating
Detailed Slash. Sheet Conductor AWG Weight Tape Braid with finisher Volt Vrms Temp oC
M22759/80A TPC 26 to 10 Light FP/Polyimide/FP (Composite) & FP --- 600 150
M22759/81A SPC Alloy 26 to 20 Light FP/Polyimide/FP (Composite) & FP --- 600 200
M22759/82A NPC Alloy 26 to 20 Light FP/Polyimide/FP (Composite) & FP --- 600 260
M22759/83A SPC 2 to 0000 Normal Skived PTFE + FP/Polyimide/FP (Composite) & FP Aromatic polyamide 600 200
M22759/84A NPC 2 to 0000 Normal Skived PTFE + FP/Polyimide/FP (Composite) & FP Aromatic polyamide 600 260
M22759/85A TPC 2 to 0000 Normal Skived PTFE + FP/Polyimide/FP (Composite) & FP Aromatic polyamide 600 150
M22759/86A SPC 26 to 10 Normal FP/Polyimide/FP (Composite) & FP --- 600 200
    8 to 0000 Normal Skived PTFE + FP/Polyimide/FP (Composite) & FP --- 600 200
M22759/87A NPC 26 to 10 Normal FP/Polyimide/FP (Composite) & FP --- 600 260
    8 to 0000 Normal Skived PTFE + FP/Polyimide/FP (Composite) & FP --- 600 260
M22759/88A TPC 26 to 10 Normal FP/Polyimide/FP (Composite) & FP --- 600 150
    8 to 0000 Normal Skived PTFE + FP/Polyimide/FP (Composite) & FP --- 600 150
M22759/89A SPC Alloy 26 to 20 Normal FP/Polyimide/FP (Composite) & FP --- 600 200
M22759/90A NPC Alloy 26 to 20 Normal FP/Polyimide/FP (Composite) & FP --- 600 260
M22759/91A SPC 26 to 10 Light FP/Polyimide/FP (Composite) & FP --- 600 200
M22759/92A NPC 26 to 10 Light FP/Polyimide/FP (Composite) & FP --- 600 260
